Liquid-tight Flexible Metallic Conduit (YF-706)

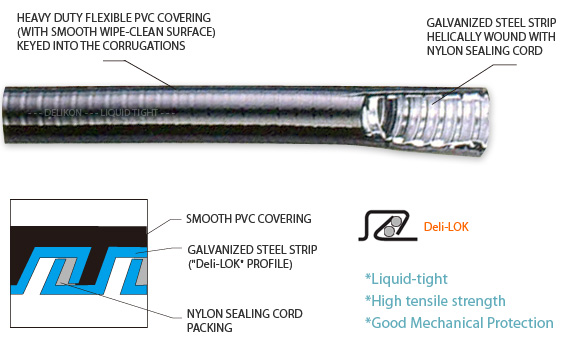

*Galvanized steel strip core with more convolutions
per meter than other conduits — for greater crush strength. *Smooth Heavy Duty PVC sheath *Trade size: 3/8"~4" (square locked, with Nylon cord packing);
*Liquid-tight *High tensile strength

Liquid-tight conduit (Sealtite) is ideal when used with liquid tight fittings for applications where a high degree of liquid tightness is required. This product is suitable for a number of general purpose applications and ideal for environments with lots of oils and greases such as machine tool workshops.

MADE FROM YF-708 FLEXIBLE METALLIC CONDUIT WITH HEAVY DUTY PVC COVERING:

*Durable and long life.
*High tensile strength.

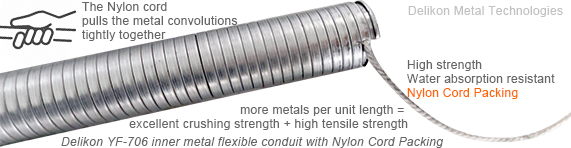

*Inner core made from a spiral wound strip of corrosion resistant galvanized steel.
*Square locked construction with packing for more strength and smooth PVC covering surface.
*Liquid tight. Complete protection against most liquids and moisture vapor. Resists sunlight, heat, oil and chemical degradation.

Applications:
Liquid-tight flexible conduit provides protection for wiring circuits located in extremely wet or damp areas. It is also suitable for machines, tools and equipment where ruggedness is required. Now in extensive use on presses, welders, pumps, blowers, grinders, conveyors, machines and portable tools, automated lines, and in construction, industry, commerce and transportation.

Related Products:
Liquid tight flexible conduits with wire over-braid for more abrasion resistance and EMI screening.
>>> Model YF-705

>>> Model YF-604 (with copper bonding wire)

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min. Bending Radius (mm)	Meters/Coil
Type	Trade Size	MIN.	MAX.	MIN.	MAX.	Min. Bending Radius (mm)	Meters/Coil
YF-70603	3/8"	12.3	12.8	18.0	18.3	50	50
YF-70604	1/2"	15.8	16.2	22.0	22.5	60	50
YF-70606	3/4"	20.8	21.3	26.5	27.0	75	30
YF-70610	1"	26.4	27.1	34.0	34.5	100	30
YF-70612	1-1/4"	35.0	35.5	42.8	43.5	135	20
YF-70614	1-1/2"	40.1	40.6	48.5	49.0	160	20
YF-70620	2"	50.5	51.2	61.3	62.0	190	15
YF-70624	2-1/2"	62.9	63.6	72.1	73.0	300	10
YF-70630	3"	77.9	78.7	87.8	88.9	450	10
YF-70640	4"	101.6	102.6	113.2	114.3	600	5

Liquid tight Flexible Steel Conduit
Heavy duty, non-wrinkling smooth durable PVC jacket for exposed applications.
— Superior performance and appearance, creating a liquidtight conduit resistant to most oils, acids and vapors present in industrial environments.

— Suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs.

*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
