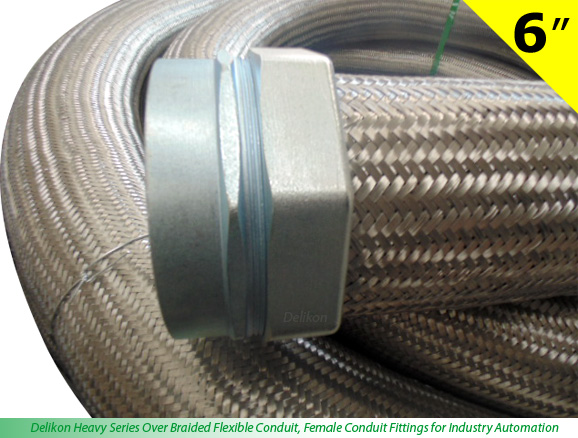

Liquid Tight Connectors
With Internal Threads





Model No.

Trade Size

Dimension (mm)

Thread

I.D.

A

B

C

YCM-03

3/8”

 11.2 28.3 44.6 13.2

PT 1/2”

YCM-04

1/2”

 14.8 34.2 44.6 13.2

PT 1/2”
YCM-04

3/4”

 18.7 41.1 51.0 14.3

PT 3/4”
YCM-10

1”

 24.8 48.6 58.1 19.2

PT 1”
YCM-12

1-1/4”

 33.1 56.6 70.2 20.8

PT 1-1/4”
YCM-14

1-1/2”

 38 71.3 75.7 21.7

PT 1-1/2”
YCM-20

2”

 48.8 86.6 84.4 21.7

PT 2”
YCM-24

2-1/2”

 59.4 103.1 101.8 25.9

PT 2-1/2”
YCM-30

3”

 75.8 120.0 110.0 26.4

PT 3”
YCM-40

4”

 97.6 157.0 118.6 30.5

PT 4”
  • Metallic connectors offering liquid-tight connections:
    *Connecting the flexible conduits to PT male threads.

  • Related Products:
    Liquid-tight connectorsLiquid-tight connectors
    New Liquid-tight Connector
    superior water tightness

    US Style
    US Style Liquidtight Fittings


     straight (metallic),external threads
    Connector with male threads

     combination (set-screw)
    Connecting FLEXIBLE to EMT
