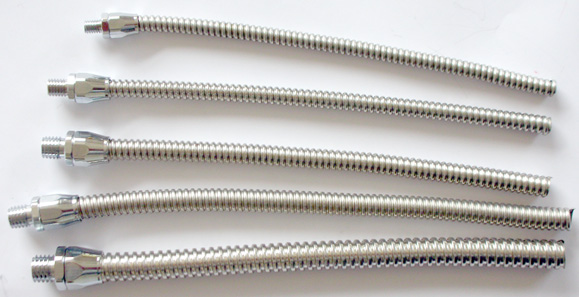

Flexible Stainless Steel Conduit(AT)

Flexible Stainless Steel Conduit ( AT )
Small bore instrumentation tubing
*Stainless steel strip (square locked or interlocked), very flexible *Corrosion Resistant

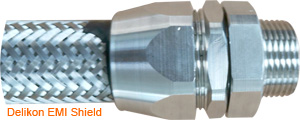

*EMI Shielding *Most suitable for instrument wiring protections.

MADE FROM STAINLESS STEEL STRIPS:
*ALL Stainless steel construction for corrosion resistant.
*Durable and long life.
*Square locked for more flexibility or interlocked for more strength.

Applications:
Suitable for use in Industrial environments . It is designed to protect sensitive electronic circuits in applications such as sensors, electronic instruments and industrial control wirings.

Related Products:
Square locked type galvanized steel conduit for economical applications
>>> Model YF-703

Galvanized steel conduits with PVC jacket for wet locations
>>> Model YF-707

Custom fittings manufactured as per your samples or drawings:

Pliable stainless steel conduits, tube
Most suitable for conveying machineries coolant, and drinking water.

Flexible Stainless Steel Conduit: Type AT is an ultra-flexible, stainless steel conduit designed primarily for OEM applications. A typical application would be armouring in specialty sensing devices, or medical equipment, including fiber-optics.

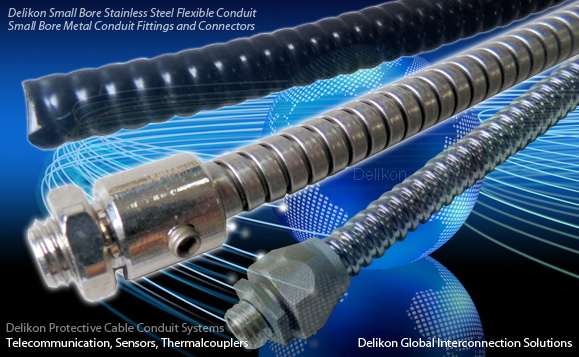

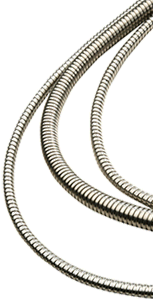

SMALL BORE HOSE
Delikon manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel or galvanized steel strip. However, other metals are also available.

Applications:
Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.

Instrumentation tubing is made in two configurations, or constructions, commonly called SquareLok and InterLok, and is often abbreviated as SL and FI.

Technical Data / specifications:

SquareLok Style (SL)

SquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

1/8”

3.5mm

0.140”

3.5mm

0.200”

5.1mm

0.017lb/ft

0.026kg/m

60lbs.
27kgs

AT-SL-002

5/32”

4mm

0.156”

4.0mm

0.235”

6.0mm

0.030 lb/ft
0.045 Kg/m

145 lbs.

66 Kg

AT-SL-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.033lb/ft

0.049 Kg/m

150 lbs.

68 Kg

AT-SL-003

7/32”

5.5mm

0.218”

5.6mm

0.303”

7.7mm

0.040 lb/ft

0.059 Kg/m

155 lbs.

70 Kg

AT-SL-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.041 lb/ft

0.061 Kg/m

190 lbs.

86 Kg

AT-SL-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.048 lb/ft

0.072 Kg/m

200 lbs.

91 Kg

AT-SL-0045

5/16”

8mm

0.313”

8.0mm

0.410”

10.9mm

0.055 lb/ft

0.082 Kg/m

200 lbs.

91 Kg

AT-SL-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.088 lb/ft

0.131 Kg/m

225 lbs.

102 Kg

AT-SL-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.106 lb/ft

0.157 Kg/m

250 lbs.

113 Kg

AT-SL-008

Fully InterLok Style (FI)

InterLok metal strip and the edges of the strip are completely interlocked with each other. This offers increased crush protection, and higher axial strength.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.041 lb/ft

0.060 Kg/m

190 lbs.

86 Kg

AT-FI-003

7/32”

5.5mm

0.218”

5.5mm

0.303”

7.7mm

0.045 lb/ft

0.067 Kg/m

200 lbs.

91 Kg

AT-FI-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.046 lb/ft

0.068 Kg/m

250 lbs.

113 Kg

AT-FI-004

OD tolerance is +/- 0.008 inches ID tolerance is +/- 0.015 inches (.4mm)

Stainless Flexible Protection conduits with PVC Sheath
For Large Quantity Order, it is possible to Vacuum-Jacket or Extrude a PVC covering onto the above AT-SL (SquareLok Type) conduits for water proof applications.

TYPE: AT-SL-JACKETED The PVC covering is applied onto the metal surface with a Vacuum process. The finished surface will have a spiral corrugated pattern. It is most suitable for tight-spot installation and where a certain water tightness is required		TYPE: AT-SL-EXTRUDED The PVC covering is extruded onto the metal surface, thus producing a smoother finished surface. when used with liquid-tight fittings it offers a higher degree of liquid tightness than the vacuum jacketed type.
