Delikon Metals
Industry Automation Wiring High Temperature Heavy Series Over
Braided Flexible Metal Conduit and High Temperature Heavy Series

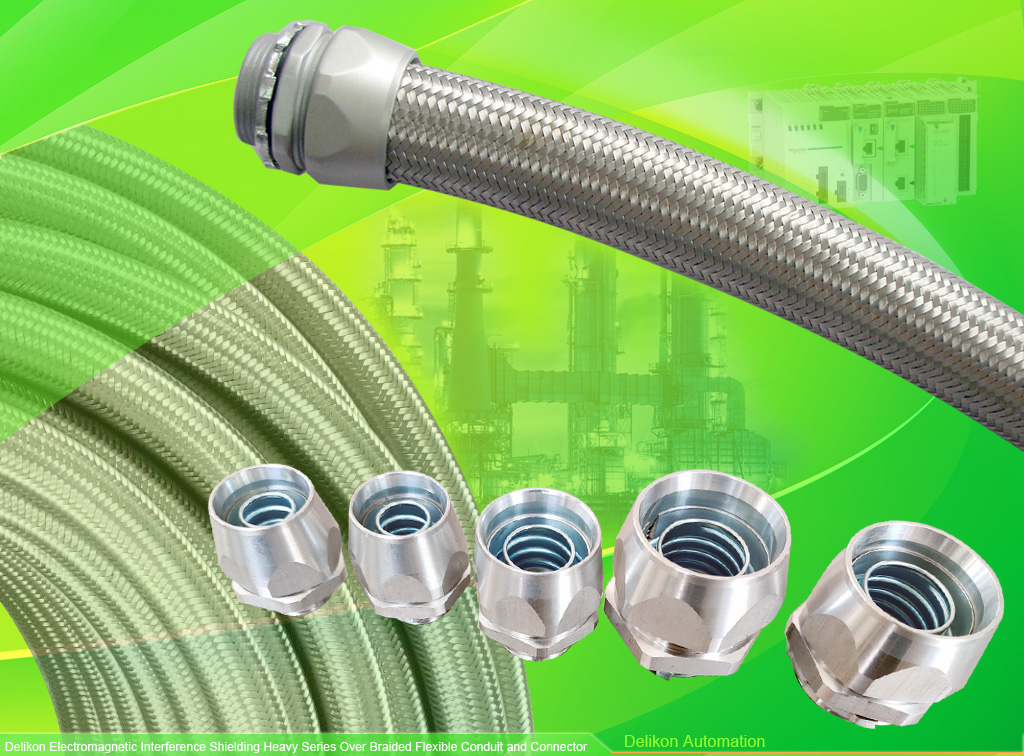

Connector![]() In addition to the benefit of protection against damage to cable components from cable motion and use, proper shielding provided by Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector is essential to many applications as it can keep out unwanted external interference. In many applications, electromagnetic interference EMI is a threat to signal integrity. Shield quality is of particular importance in small signal or high frequency applications where a slight variation can have significant impact. All electrical cable will radiate energy to, and pick up energy from, its surroundings. As such, shielding of Delikon flexible conduit system can also be used to contain the electromagnetic energy radiated by a cable, which in turn can protect nearby sensitive components. |
||
![]() |
||
![]() Delikon Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect oil and petroleum industry, automotive industry and steel mill automation data and signal wire and cable from signal distortion caused by nearby equipment and devices or prevent a stronger signal from leaking out and interfering with surrounding electronics. The outer braided shield of the over braided flexible conduit creates a barrier that separates the electric field surrounding the central conductor from anything outside. Delikon Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector is used to enhance the cable structural and signal integrity, and to protect it against external environmental conditions such as water for dust ingress, chemical exposure, and hot metal sparks exposure, preventing cable failure as the result of impact and abrasion, and against harsh environmental conditions such as crushing forces, rodents and UV radiation. Delikon heavy series connector is tough, durable, and has an internal grounding clamp that provides proper shield termination and grounding to ensure the safety of workers and equipment. |
||
![]() |
||
Delikon
Electromagnetic Interference Shielding
Heavy Series Over Braided
Flexible Conduit and Heavy Series Connector protect motion control
cable, VFD Cable, and automation cable of Automotive and Tire
industry, Cement Industry, Chemical industry, Oil and Gas Industry,
Semiconductor industry, battery industry and Mining industry
A cable to electro magnetic frequencies looks a lot like an antenna. If we allow too much signal to noise ratio into the system, the machine will not work as expected. ![]() ![]() Delikon Electromagnetic Interference Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector also ensure highly reliable mechanical protection as well as hot metal sparks protection and flexible routing of wires and cables. |
||
![]() |
||
![]() |
||
![]()
Delikon interference
shielding Heavy Series Over Braided Flexible Conduit and Heavy
Series Connector for steel mill, oil and gas industry, Refineries
and Petrochemical industry, mining industry automotive industry
automation cable protection |
||
![]() |
||
Delikon
Interference Shielding Heavy Series Over Braided Flexible Conduit
and EMI Shield Termination Heavy Series Connector for steel mill,
oil and gas industry, Refineries and Petrochemical industry,
automotive industry automation Instrumentation and control cable
protection and Shielding![]() Delikon Interference Shielding Heavy Series Over Braided Flexible Conduit system shielding provides flexibility to the cable and protection against coupling by induction or diffusion. In automation systems, proper grounding helps reduce signal noise and interference. Delikon heavy series connector has a grounding clamping ring which will clamp the metal braiding tightly when the sealing nut is tightened, together with the heavy series over braided conduit minimizing the potential noise pickup by providing a low resistance pathway for these unwanted voltages and currents that could lead to safety hazards or degradation of processing control signals. Delikon Interference Shielding Heavy Series Over Braided Flexible Conduit and EMI Shield Termination Heavy Series Connector reduce the problems associated with signal noise, erratic spikes, or interference . |
||
![]() |
||
Delikon High
Temperature EMI Shielding
Heavy Series Over Braided Flexible Metal Conduit and High
Temperature Heavy Series Connector for Metals and Mining
![]() Delikon has been providing High Temperature EMI Shielding Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for protection of automation control system cables in steel making and processing operations including assets such as electric arc furnaces, continuous casters, and rolling and processing lines. In addition to the benefit of providing robust protection from the environment, either mechanically tough enough to wear and abrasion or resistant to the industry ambient conditions, Delikon Heavy Series Over Braided Flexible Metal Conduit and Heavy Series Connector also provide proper shielding for the cables, which is essential to many applications as it can keep out unwanted external interference as well as contain the electromagnetic energy radiated by a cable, which can protect nearby sensitive components. |
||
![]() |
![]() |
Cable protection hoses Descriptions / Features |
Suitable connectors |

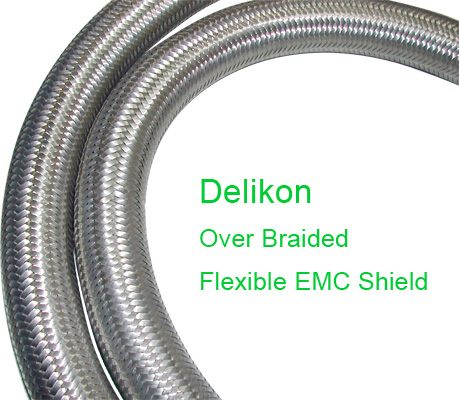

EMC Shield Over Braided Flexible Conduit Catalog Page |
|||||
![]() |
![]() |
![]() |
![]() |
|||||
YF-705![]() |
*Galvanized steel strip core (with Nylon cord packing) *PVC Covering *Wire over-braid *Trade size: 3/8"~4" *Liquid-tight *EMI/RFI shielding |
Galvanised Steel Conduit, Smooth PVC Covering, Steel Overbraid (IP 67) |
YF-705 | |||||
![]() |
![]() |
|||||||
SM-701![]() |
*Galvanized steel strip core (Interlocked
constructions) *PVC covering *Metal wire over-braid
*Trade size: 3/8"~4" *Liquid-tight
*EMI/RFI shielding *High tensile strength |
Galvanized Steel Conduit, Smooth PVC Covering, Steel Overbraid, High Strength |
SM-701 | |||||
![]() For high tensile strength applications. |
![]() |
|||||||
YF-704![]() |
*Galvanized steel strip core *PVC covering *Wire over-braid *5mm~6" trade size *Very Flexible *Water-tight *EMI/RFI shielding |
Galvanized Steel Conduit with PVC Covering, Steel overbraid (IP 54) |
YF-704 | |||||
![]() BRAIDED Flexible metallic conduit, water proof, is typically used for steel mill machineries and petrochemical industries cable protection. |
||||||||
PBF![]() |
*Corrugated Nylon core *Wire over-braid
*1/4"~2" trade size *Very Flexible, Light Weight *Liquid-tight *EMI/RFI shielding |
Corrugated Nylon Conduit, Steel Overbraid (IP 67) |
PBF |
|||||
![]() |
||||||||
WNS/ORC![]() |
*Wire over-braid *6mm - 25mm trade size *Liquid-tight *Oil resistant *EMI/RFI shielding *Model ORC features an inner hose of high quality NBR rubber |
Oil Resistant Conduit, Steel Overbraid (IP 67) |
WNS / ORC |
|||||
![]() tools, and hydraulic presses, which are subjected to moisture from coolant, oils and fluids. |
||||||||
SM70001![]() |
*Galvanized steel strip core *Wire over-braid *5mm~6" trade size *All metallic for high temperature applications *EMI/RFI shielding *High Temp. | Galvanized Steel Conduit, Steel overbraid (IP 40) |
SM-70001 |
|||||
![]() Overbraided Flexible Steel Conduit with Steel Braid, resists hot metal splashes. It is resistant against tensile stresses and transverse pressure. |
||||||||
AT-SL-BRAIDED![]() |
*Metal wire over braided small bore tubing *3.5mm - 12.7mm ID. ![]() *All metallic for high temperature applications *EMI/RFI shielding |
Stainless Steel Conduit, Steel Overbraid (IP 40) |
AT-BRAIDED |
|||||
|
||||||||
SC![]() |
*Inner Stainless steel flexible hose with fibre glass cord packing *Triple layers stainless steel wire braidings *high level of thermal resistance for combustion equipment wiring | Triple Stainless Steel Over Braided Flexible Stainless Steel Conduit (IP 50) |
SC |
|||||
|
Assembly![]() |
Overbraided systems --- with connectors
pre-assembled --- save time and labor costs. Electric Flexible Conduit systems for EMI shielding, abrasion and hot metal splashes resistance. Comprises a standard conduit construction, with metallic ![]() Typically used for machineries, steel mills and petrochemical industrial cable protection
|
![]() |
|
