Over Braided InterLocked Metal Liquid Tight Conduit ( SM-701 ) Over Braided Flexible Conduit,Flexible Conduit Fittings - Industry automation wiring solution

High Strength InterLocked Over Braided Liquid Tight Conduit is most suitable for industry machines wirings demanding high mechanical strength with high abrasion and hot metal swarfs resistance.

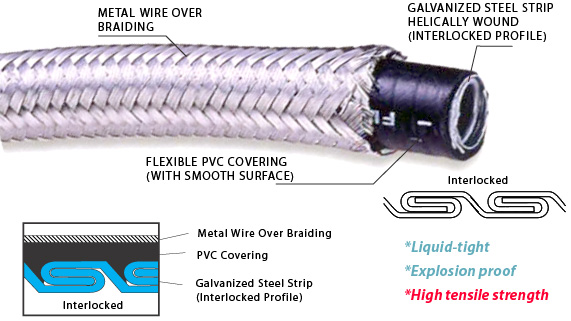

*Galvanized steel helically wound (interlocked) with PVC coating and wire over-braid.
*Trade size: 3/8"~4" (
Interlocked profile for increased tensile strength.*Liquid-tight
*EMI shielding *Explosion proof (for use in Hazardous Location) *High Tensile strength


Over braided Flexible Conduit and swivel fittings protecting vulnerable industrial cables.

Over braided flexible conduit and fittings systems protect vulnerable cabling on metal machining, welding or heavy plant where abrasion, spillage and increased temperature are all serious operational considerations.

With earth continuity via the specially designed fittings, the over braiding can offer a high degree of EMI screening capability for machinery data or power cables.

Over braided Flexible Conduit and svivel fittings protecting vulnerable industrial cables
Over Braided InterLocked Metal Liquid Tight Conduit for machine cables protection
    *Wire over-braiding provides more abrasion resistant, EMI shielding and resistance to hot metal splashes.
    Explosion proof.
    *Durable and long life.
    *High tensile strength.
    *Inner core made from  galvanized steel strip.
    *Interlocked construction prevents unraveling
  • Applications:
    This Flexible Metal Conduit is suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required.
    Braided flexible conduit for CNC machine wiring assembly
  • Related Products:
    Liquid tight flexible Metal conduit without wire over-braid. Suitable for machines.
    Model YF-706  Model YF-806
    Liquid tight metal conduit with nylon cord packing InterLocked Liquid tight Flexible Metal Conduit


Electrical flexible conduits for offshore oil and gas industry wirings
Offshore & Heavy industrial wiring flexible conduit

Heavy Series Over Braided Flexible Conduit for high temperature industry applications
Heavy Series Over Braided Flexible Conduit for high temperature industry applications
Over Braided Flexible Metal Conduit offers excellent protection to cables against hot metal splash in steel mills

EMI/RFI Shielding conduit: This conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). This braided liquid tight flexible metal conduit is most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments. Industry Control Flexible Conduit

Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil
SM-70103 3/8" 12.3


18.0 18.3 50 50
SM-70104 1/2" 15.8 16.2 22.0 22.5 60 50
SM-70106 3/4" 20.8 21.3 26.5 27.0 75 30
SM-70110 1"


27.1 34.0 34.5 100 30
SM-70112 1-1/4" 35.0 35.5 42.8 43.5 135 20
SM-70114 1-1/2" 40.1 40.6 48.5 49.0 160 20
SM-70120 2" 50.5 51.2 61.3 62.0 190 15
SM-70124 2-1/2" 62.9 63.6  73.1 74.0 400 10
SM-70130 3" 77.9 78.7 88.8 89.9 550 10
SM-70140 4"  101.6 102.6 114.2 115.3 700 5
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
Also Refer To:
Braided Flexible Metal Conduit, Water Proof

Shielding over braided flexible conduit shields sensitive equipment and circuits from EMI/RFI emissions

Heavy series over braided flexible conduit and swivel connectorHeavy Series Over Braided Flexible Conduit for high temperature industry applications. Thanks to its resistant outer casing of braiding, heavy series Over braided flexible conduit is ideal for use in high temperature industrial applications with sparks, weld slag or hot swarf. Heavy series Over braided flexible conduit is particularly suitable for metal industry. Swivel Fittings are ideal for high vibration machine applications. Available with male or female G, PG, METRIC or NPT Thread
Electrical flexible conduit

Over braided flexible conduit with swivel fittings are ideal for metal industry wiring applications
Over Braided Flexible Steel Conduits for heavy industryFor Automation Connectors and fittings for braided flexible conduitCONNECTOR & FITTINGS FOR
Heavy Series Flexible Conduit
Suitable connectors
YABS,liquid tight connector for braided flexible conduit Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
