Braided Flexible Liquid Tight Metal Conduit ( YF-705 )

Wire Over-Braided Flexible Liquid Tight Conduit ( YF-705 )
most suitable for demanding industrial wiring applications.

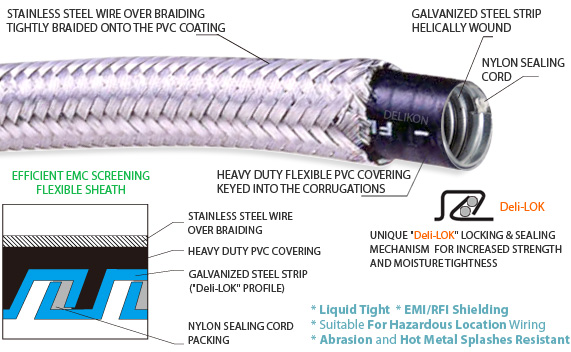

*Galvanized steel helically wound with PVC covering and wire over-braid.
*Trade size: 3/8"~2" (square locked, with Nylon cord packing.
Other packing materials, such as PVC wire, or copper wire is also available.)
*Liquid-tight *EMI/RFI shielding *Explosion proof (Suitable for use in Hazardous Location) *High tensile strength

Suitable for airport wirings,radar equipments...

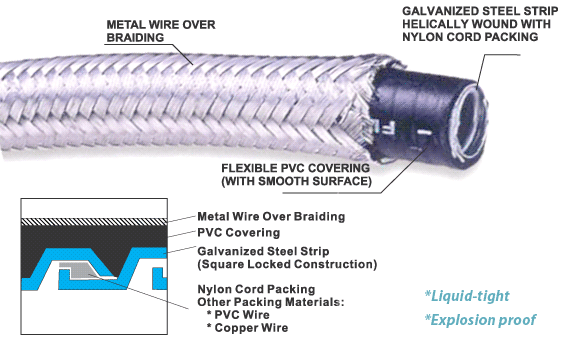

MADE FROM TYPE YF-706 CONDUIT WITH WIRE OVER-BRAID:
*Wire over-braiding provides more abrasion resistant, EMI shielding and resistance to hot metal splashes.
*Explosion proof (Class I, Div. 2 and Classes II and II). Liquid-tight.
*Durable and long life.
*High tensile strength.
*Inner core made from galvanized steel strip.
*Square locked construction with packing for more tensile strength or air tightness.
*Other packing materials: copper bonding (grounding) wire, PVC wire packing is also available.

Applications:
Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required. It is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission.

Related Products:
Liquid tight flexible conduits without wire over-braid.
>>> Model YF-706

>>> Model YF-704

EMI/RFI Shielding conduit: This conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). Most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments.

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min Bending Radius (mm)	Meter/Coil
Type	Trade Size	MIN.	MAX.	MIN.	MAX.	Min Bending Radius (mm)	Meter/Coil
YF-70503	3/8"	12.3	12.8	18.8	19.3	78	50
YF-70504	1/2"	15.8	16.2	22.8	23.1	95	50
YF-70506	3/4"	20.8	21.3	27.5	28.0	120	30
YF-70510	1"	26.4	27.1	34.8	35.3	180	30
YF-70512	1-1/4"	35.0	35.5	43.8	44.5	230	20
YF-70514	1-1/2"	40.1	40.6	49.5	50.0	270	20
YF-70520	2"	50.5	51.2	62.3	63.0	300	15

*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
