Zinc Plated:
YZB 0º
Chrome Plated:
YCB 0º
|
Model No. |
Trade Size |
Dimension (mm) |
Thread |
|
I.D. |
A |
B |
C |
D |
|
YZB-03B |
3/8” |
10.7 |
20.9 |
30.0 |
15.0 |
54.0 |
PF 1/2” |
|
YZB-04B |
1/2” |
14.3 |
20.9 |
35.5 |
15.0 |
57.0 |
PF 1/2” |
|
YZB-06B |
3/4” |
19.3 |
26.4 |
43.0 |
15.0 |
67.0 |
PF 3/4” |
|
YZB-10B |
1” |
24.4 |
33.1 |
48.0 |
21.5 |
73.0 |
PF 1” |
|
YZB-12B |
1-1/4” |
33.4 |
41.9 |
58.0 |
22.5 |
93.5 |
PF 1-1/4” |
|
YZB-14B |
1-1/2” |
38.0 |
47.5 |
64.2 |
25.0 |
103.0 |
PF 1-1/2” |
|
YZB-20B |
2” |
48.8 |
59.0 |
86.6 |
25.0 |
126.0 |
PF 2” |
|
YZB-24B |
2-1/2” |
59.4 |
75.4 |
103.0 |
26.0 |
165.0 |
PF 2-1/2” |
|
YZB-30B |
3” |
75.8 |
87.5 |
120.0 |
26.0 |
189.0 |
PF 3” |
|
YZB-40B |
4” |
97.6 |
113.0 |
157.0 |
32.0 |
229.0 |
PF 4” |
Zinc Plated:
YZL 90º
Chrome Plated:
YCL 90º
|
Model No. |
Trade Size |
Dimension (mm) |
Thread |
|
I.D. |
A |
B |
C |
D |
|
YZL-03B |
3/8” |
10.7 |
20.9 |
30.0 |
15.0 |
54.0 |
PF 1/2” |
|
YZL-04B |
1/2” |
14.3 |
20.9 |
35.5 |
15.0 |
57.0 |
PF 1/2” |
|
YZL-06B |
3/4” |
19.3 |
26.4 |
43.0 |
15.0 |
67.0 |
PF 3/4” |
|
YZL-10B |
1” |
24.4 |
33.1 |
48.0 |
21.5 |
73.0 |
PF 1” |
|
YZL-12B |
1-1/4” |
33.4 |
41.9 |
58.0 |
22.5 |
93.5 |
PF 1-1/4” |
|
YZL-14B |
1-1/2” |
38.0 |
47.5 |
64.2 |
25.0 |
103.0 |
PF 1-1/2” |
|
YZL-20B |
2” |
48.8 |
59.0 |
86.6 |
25.0 |
126.0 |
PF 2” |
|
YZL-24B |
2-1/2” |
59.4 |
75.4 |
103.0 |
26.0 |
165.0 |
PF 2-1/2” |
|
YZL-30B |
3” |
75.8 |
87.5 |
120.0 |
26.0 |
189.0 |
PF 3” |
|
YZL-40B |
4” |
97.6 |
113.0 |
157.0 |
32.0 |
229.0 |
PF 4” |

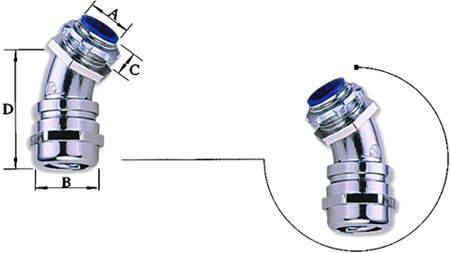

Zinc Plated:
YZH 45º
Chrome Plated:
YCH 45º
|
Model No. |
Trade Size |
Dimension (mm) |
Thread |
|
I.D. |
A |
B |
C |
D |
|
YZH-03B |
3/8” |
10.7 |
20.9 |
30.0 |
15.0 |
54.0 |
PF 1/2” |
|
YZH-04B |
1/2” |
14.3 |
20.9 |
35.5 |
15.0 |
57.0 |
PF 1/2” |
|
YZH-06B |
3/4” |
19.3 |
26.4 |
43.0 |
15.0 |
67.0 |
PF 3/4” |
|
YZH-10B |
1” |
24.4 |
33.1 |
48.0 |
21.5 |
73.0 |
PF 1” |
|
YZH-12B |
1-1/4” |
33.4 |
41.9 |
58.0 |
22.5 |
93.5 |
PF 1-1/4” |
|
YZH-14B |
1-1/2” |
38.0 |
47.5 |
64.2 |
25.0 |
103.0 |
PF 1-1/2” |
|
YZH-20B |
2” |
48.8 |
59.0 |
86.6 |
25.0 |
126.0 |
PF 2” |
|
YZH-24B |
2-1/2” |
59.4 |
75.4 |
103.0 |
26.0 |
165.0 |
PF 2-1/2” |
|
YZH-30B |
3” |
75.8 |
87.5 |
120.0 |
26.0 |
189.0 |
PF 3” |
|
YZH-40B |
4” |
97.6 |
113.0 |
157.0 |
32.0 |
229.0 |
PF 4” |
|

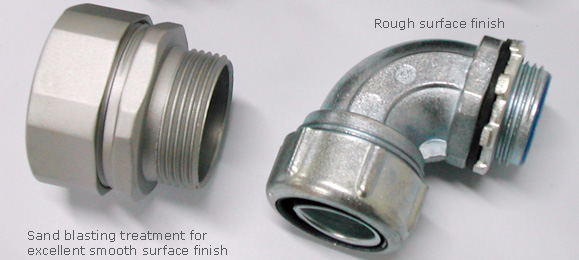

Low Voltage
Fittings:

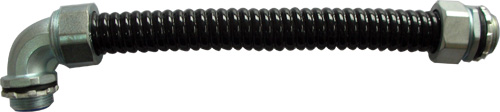

- Metallic connectors offering liquid-tight
connections:
*Connecting the flexible conduits to electrical boxes, enclosures
and machineries housings.
- Suitable for use with:
YF-705
YF-704
YF-706
YF-707
YF-703
