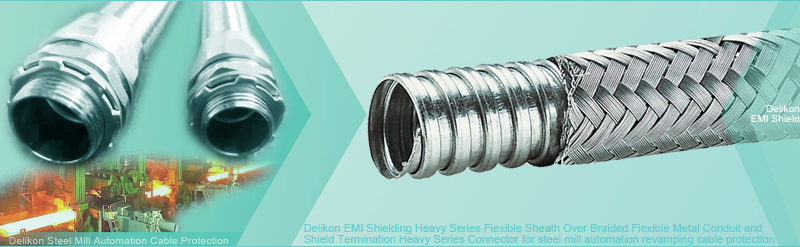

- MADE FROM INTERLOCKED CONDUIT WITH WIRE
OVER-BRAID:

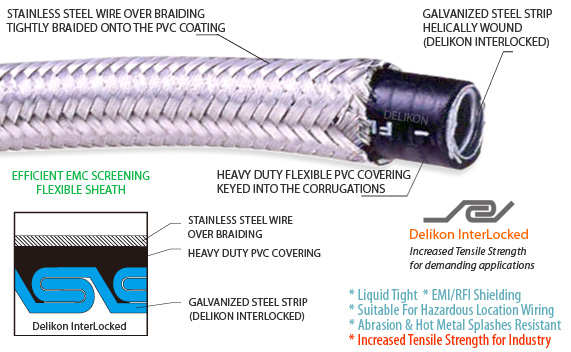

*Wire over-braiding provides more
abrasion resistant, EMI shielding and resistance to hot metal splashes.
*Explosion proof. Liquid-tight.
*Durable and long life.
*High tensile strength.
*Inner core made from
galvanized steel strip.
*Square locked construction with
packing for more tensile strength or air tightness.
*Other packing materials: copper bonding
(grounding) wire, PVC wire packing is also
available.
- Applications:
Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required.
- Related
Products:
Liquid tight flexible conduits without wire over-braid. >>>
Model YF-706
|
|

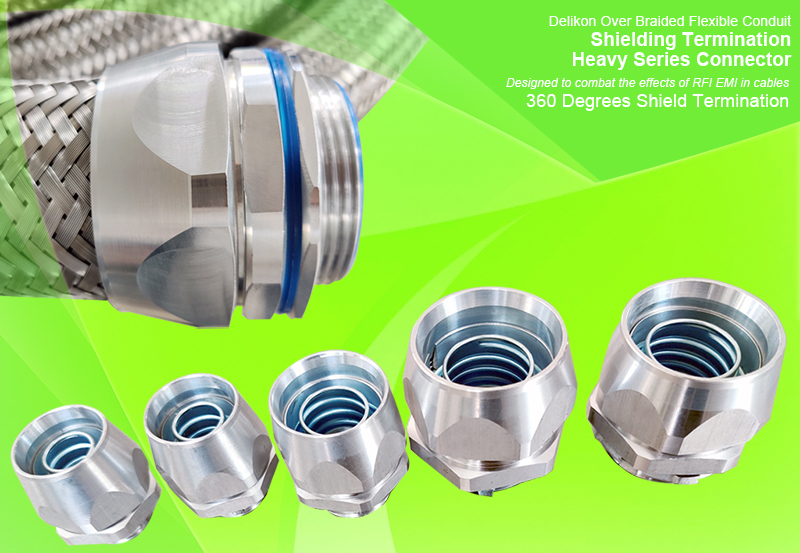

EMI/RFI Shielding conduit: This
conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data
transmission from Electro-Magnetic and Radio Frequency Interference (EMI /
RFI). Most suitable for radar equipments, airports, CNC machineries and
PLC wirings in industrial environments.
|
| Type |
Trade Size |
I.D. (mm) |
O.D. (mm) |
Min Bending Radius
(mm) |
Meter/Coil |
| MIN. |
MAX. |
MIN. |
MAX. |
| SM-70103 |
3/8" |
12.3
|
12.8
|
18.0 |
18.3 |
50 |
50 |
| SM-70104 |
1/2" |
15.8 |
16.2 |
22.0 |
22.5 |
60 |
50 |
| SM-70106 |
3/4" |
20.8 |
21.3 |
26.5 |
27.0 |
75 |
30 |
| SM-70110 |
1" |
26.4
|
27.1 |
34.0 |
34.5 |
100 |
30 |
| SM-70112 |
1-1/4" |
35.0 |
35.5 |
42.8 |
43.5 |
135 |
20 |
| SM-70114 |
1-1/2" |
40.1
|
40.6
|
48.5 |
49.0 |
160 |
20 |
| SM-70120 |
2" |
50.5 |
51.2 |
61.3 |
62.0 |
190 |
15 |
|
*All sizes and dimensions
listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other
custom packaging methods or of longer length is also possible upon request and our approval. |
