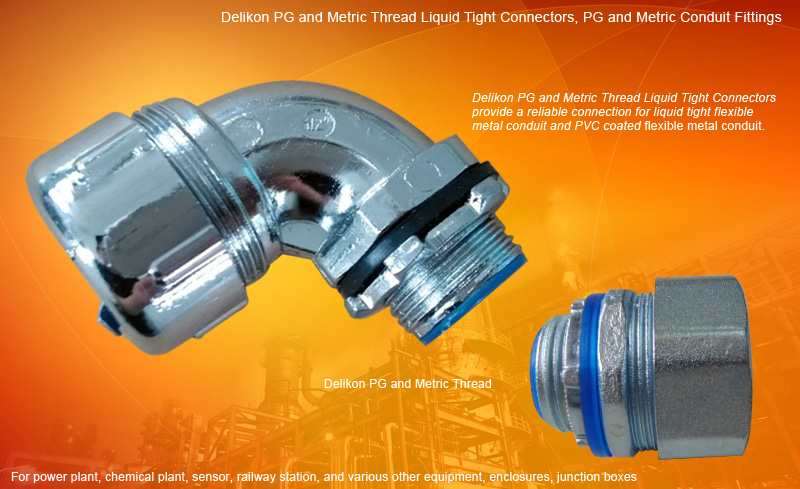

Liquid-Tight Metal Connectors -  With PG or Metric Threads Connects flexible conduits to electrical boxes
For use with both Metallic Liquid tight Conduit and Non-metallic Liquid tight Type B
Material: Zinc Die Cast, Zinc or Chrome Plated.  For machinery wiring
* Available in 3/8 inch to 4 inches trade sizes *Resistant to outdoor weather conditions
*Liquidtight/Raintight/OilTight, Suitable for wet locations *Straight & Elbow

PG Threads Metal Liquid Tight Conduit Fittings (0 degree)

PG Threads
Metal Liquid Tight Conduit Fittings
(0 degree)

Model No.

For Conduit

Straight LT Connector Dimension (mm)

PG
Thread

I.D.

A

B

C

D

YZB-0309

3/8

10.0

15.2

30.0

9.0

36.5

PG9

YZB-0311

3/8

10.7 18.6 30.0 6.5 36.5 PG11

YZB-0313

3/8

10.7 20.4 30.0 6.5 36.5 PG13.5

YZB-0316

3/8

10.7 22.5 30.0 6.5 36.5 PG16

YZB-0411

1/2

14.5 18.6 35.5 9.0 38.0 PG11

YZB-0413

1/2

14.5 20.4 35.5 9.0 38.0 PG13.5

YZB-0416

1/2

14.5 22.5 35.5 9.0 38.0 PG16

YZB-0421

1/2

14.5 28.3 35.5 9.0 38.0 PG21

YZB-0621

3/4

19.3 28.3 43.0 9.0 38.0 PG21

YZB-1029

1

24.4 37.0 48.0 11.0 50.0 PG29

YZB-1236

1-1/4

33.4 47.0 58.0 11.0 52.0 PG36

YZB-1442

1-1/2 38.0 54.0

64.2

15.0

60.0

PG42

YZB-2048

2

48.8

59.0

86.6

20.0

80.5

PG48

Metric Threads Metal Liquid Tight Conduit Fittings  (0 degree)

Metric Threads
Metal Liquid Tight Conduit Fittings  (0 degree)

Model No.

For Conduit

Straight LT Connector Dimension (mm)

METRIC
Thread

I.D.

A

B

C

D

YZB-03M16

3/8

10.7 16 30 12 39.5

M16

YZB-03M20

3/8

10.7 20 30 13 40.5

M20

YZB-04M20

1/2

14.5 20 35.5 13 42.0

M20

YZB-04M25

1/2

14.5 25 35.5 13 42.0

M25

YZB-06M25

3/4

19.3 25 40 13 42.0

M25

YZB-06M32

3/4

19.3 32 40 15 44.0

M32

YZB-10M32

1

24.4 32 46.5 15 54.0

M32

YZB-10M40

1

24.4 40 46.5 15 54.0

M40

YZB-12M40

1-1/4 33.4 40 58.0 15 56.0 M40

YZB-14M50

1-1/2 38.0 50

64.2

19 64.0 M50

YZB-20M63

2

48.8

63

86.6

25 85.0 M63

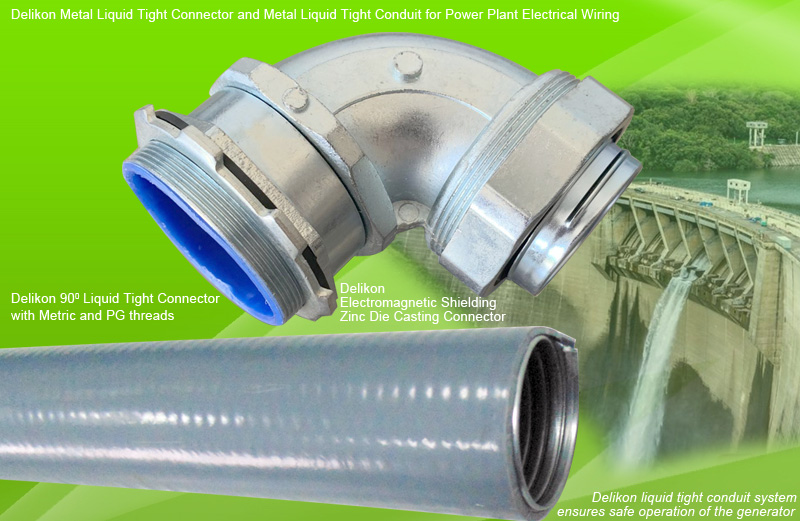

PG Threads Metal Liquid Tight Conduit Fittings (90 degrees)

PG Threads
Metal Liquid Tight Conduit Fittings
(90 degrees)

Model No.

For Conduit

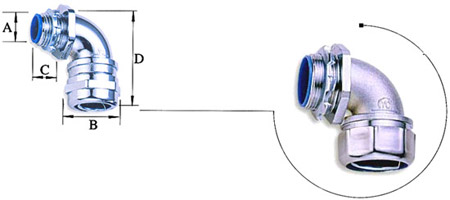

90 Degrees LT Connector Dimension (mm)

PG
Thread

I.D.

A

B

C

D

YZL-0309 3/8

10.7

15.2

30.0

8.5

54.0

PG9

YZL-0311 3/8

10.7

18.6

30.0

8.5

54.0

PG11

YZL-0313

3/8

10.7

20.4

30.0

8.5

54.0

PG13.5

YZL-0413

1/2

14.5 20.4 35.5 8.5 57.0 PG13.5

YZL-0416

1/2

14.5 22.5 35.5 12.5 57.0 PG16

YZL-0421

1/2

14.5 28.3 35.5 12.5

57.0

PG21

YZL-0621

3/4

19.3 28.3 43.0 14.0

67.0

PG21

YZL-1029

1

24.4 37.0 48.0 17.5

73.0

PG29

YZL-1236

1-1/4

33.4 47.0 58.0 18.0

93.5

PG36

YZL-1442

1-1/2 38.0 54.0

64.2

21.5

103.0

PG42

YZL-2048

2

48.8

59.0

86.6

24.0

126.0

PG48

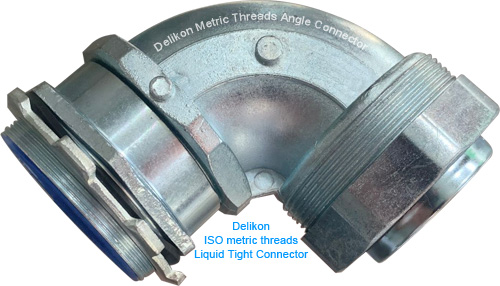

Metric Threads Metal Liquid Tight Conduit Fittings (90 degrees)

Metric Threads
Metal Liquid Tight Conduit Fittings (90 degrees)



Model No.

For Conduit

90 Degrees LT Connector Dimension (mm)

METRIC
Thread

I.D.

A

B

C

D

YZL-03M16

3/8

10.7

16

30

13

54.0

M16

YZL-03M20

3/8

10.7

20

30

13

54.0

M20

YZL-04M20

1/2

14.7

20

35.5

13

57.0

M20

YZL-06M25

3/4

19.3

25

40

13

67.0

M25

YZL-10M32

1

24.4

32

46.5

15

73.0

M32

YZL-10M40

1

24.4 40 46.5 15

73.0

M40

YZL-12M40

1-1/4 33.4 40 58.0 15

93.5

M40

YZL-14M50

1-1/2 38.0 50

64.2

19

103.0

M50

YZL-20M63

2

48.8

63

86.6

25

126.0

M63
  • Related Products:
    Liquid tight connectors with G thread >>>
      straight (metallic)

  • Suitable For Use With:
    Liquid Tight Metal Conduit

    Liquid-tight conduit is ideal when used with liquid-tight fittings for applications where a high degree of liquid tightness is required.
  • New Produts:
    New Products:Overbraided Flexible Steel Conduit

  • Liquid tight connectors with increased IP rating
    Liquid-tight connectorsLiquid-tight connectors

  • EMT Fittings
    EMT connectors    Straight Liquid Tight Connector (US style, NPT thread)
    NPT LT Fittings

    Connectors and fittings for braided flexible conduit


    Connectors and fittings for braided flexible conduit

    Liquidtight Connector with Internal Threads >>>
    combination (internal thread)  combination (set-screw):Connecting FLEXIBLE to EMT
    Combination Connectors

    Braided Flexible Conduit Systems for industry
    Braided Flexible Conduit Systems for industry
    Developed for use on machining and OEM applications, Delikon protective over braided flexible conduit systems have continuously evolved to included specialized systems for chemical, engineering, offshore, rail, underground, tunnel and security applications. They are available in a wide selection of nominal conduit diameters and constructions.
    PG & Metric Liquid Tight Conduit Fittings.
    Corrugated Nylon Conduit,Fittings For industry robot & control cables
Heavy series flexible cable sheath water proof over braided flexible steel conduit offers optimum cable protection. Heavy series flexible cable sheath water proof over braided flexible steel conduit offers optimum cable protection in industry applications for protection against HOT metal sparks, slag, etc..Automation Wiring BRAIDED FLEXIBLE LIQUID TIGHT CONDUIT for cable management and protection of critical wiring in Mining, Oil and Gas, Ship Building, Beverage and Machine Tools Industry
