NPT Liquid Tight Conduit Fittings, LT Connector liquidtight connector conduit Liquid tight conduit system

Material: Zinc Die Cast, most suitable for use with liquidtight conduit conector curvo 90

Resistant to outdoor weather conditions lt conduit conector recto hermetico,curvo 90
Most suitable for use with liquid tight flexible metal conduit. NPT thread.
Flexible, sleek, with increased IP ratings, Liquid-tight flexible metallic conduit
system (LFMC) is suitable for use in a variety of environments and applications.

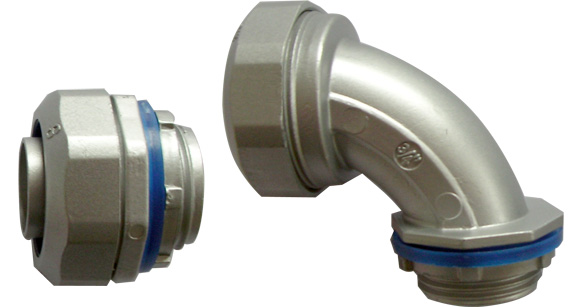

Model: DMA   Straight LT connector  Model: DMB90 degrees LT connector

Liquid Tight Metal Connector

  • Metallic connectors offering liquid-tight connections:
    conector recto hermetico
    *Connecting the flexible conduits to electrical boxes, enclosures
    and machineries housings.
    conector recto hermetico
  • 3/8" - 4" trade size
    Straight or Elbow
  • Related Products:

Liquidtight Conduit (Black)
LiquidTight Flexible Metal Conduit
Liquid-tight conduit is ideal when used with liquid-tight fittings for applications where a high degree of liquid tightness is required. Metal Liquid Tight Conduit System

  • Standard liquid tight connectors  >>>
    curvo 90,lt connector
      combination (internal thread) Connectors with PG or Metric threads Liquidtight connector with PG & Metric Thread
    curvo 90,lt connector
    Liquid-tight connectorsLiquid-tight connectors
    New Liquidtight Connector
    Superior water tightness
    Fixed or swivel type.

For Braided Flexible Conduit System
Connector For Braided Flexible Conduit System
Braided Flexible Metal Conduit System is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. Connectors and fittings for braided flexible conduitBraided flexible conduit also offers excellent protection against hot metal particles, and immunity from electromagnetic interference. Braided flexible steel conduits are most suitable for use in Hazardous Locations, industrial environments and high temperatures wiring applications.

Flexible Liquid Tight Metal Conduit









Liquid tight flexible conduit

Model: DMA 0                 Model: DMB 90

Straight LT metal connector       90 degrees LT connectors

 Liquid Tight Conduit Fittings  ( Straight & 90 Degrees), NPT Threads

DMA liquidtight connector

Model No.

Trade Size

Dimension (mm)

I.D.

A

B

C

DMA-03B

3/8

10.5 32 34.5 11.5

DMA-04B

1/2

13.8 32.5 34.5 12

DMA-06B

3/4

18 34 41 12.5

DMA-10B

1

24 42.5 47 15

DMA-12B

1-1/4

32.5 49 59 17.5

DMA-14B

1-1/2

37 49 65.5 17.5

DMA-20B

2

48.5 51 78 17.5

DMA-24B

2-1/2

59.5 74 97 25

DMA-30B

3

74 81 115 25

DMA-40B

4

97 89 139 29
DMB liquidtight connector

Model No.

Trade Size

Dimension (mm)

I.D.

A

B

C

DMB-03B

3/8

10.5 20 34.5 12.5

DMB-04B

1/2

13.8 20 34.5 12.5

DMB-06B

3/4

18 23 41 12.5

DMB-10B

1

24 28 47 17

DMB-12B

1-1/4

32.5 34 59 18

DMB-14B

1-1/2

37 39 65.5 18

DMB-20B

2

48.5 46 78 18

DMB-24B

2-1/2

59.5 53 97 25

DMB-30B

3

74 62 115 25

DMB-40B

4

97 71 139 28
 Sandblasted surface finish available for increased corrosion resistant
Liquid Tight Connector with sandbalsting surface finish
Complete Range of Delikon Quality Liquid Tight Conduits For electric substation wirings
Liquid-tight zinc die cast connectors
*Available in 3/8 inch to 4 inch trade size
*Zinc Die-cast construction
*For use with both Metallic Liquid tight Conduit
  and Nonmetallic Liquid tight Type B
*Resistant to outdoor weather conditions
*Liquidtight/Raintight/OilTight DMA DMB DMA
*Suitable for wet locations liquidtight conduit
*Suitable for grounding (through 1-1/4")
*Locknut included liquidtight conduit liquidtight

liquidtight connector liquidtight connectorhigh strength metallic overbraided flexible liquid tight metal conduit
Heavy Industry Electrical Flexible Conduit Products:Over Braided Flexible Steel Conduits for heavy industry        NEWS
Metallic Liquid tight Conduit Liquid Tight Connectors and Fittings
Liquid Tight Connectors & Fittings
Most suitable for Connecting flexible conduit to electric box or enclosure.
LT liquidtight Connectors offer excellent pull-off characteristics. These Connectors are suitable for use with metallic and non-metallic "Type B" liquid tight conduit.
