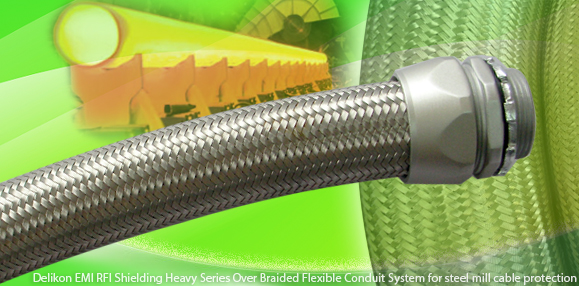

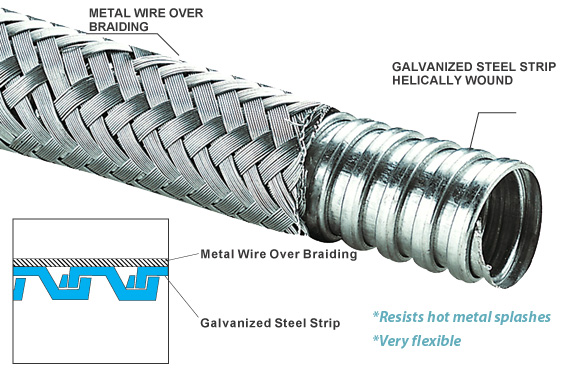

- MADE FROM TYPE YF-703 CONDUIT WITH WIRE
OVER-BRAID:
*Wire over-braiding provide more
abrasion resistant and EMI shielding.
*Durable and long life.
*Inner core made from
galvanized steel strip.
*Low fire hazard
*Resists hot metal splashes and
high temperature
*Overbraided conduits are
particularly suitable for installation in abrasive environments.
- Applications:
Most suitable for use in industrial environments and high
temperatures, such as welding machines and metal casting machines; Also for industrial environments where higher abrasion resistance or
EMI screening are required.
- Related
Products:
Flexible conduits with PVC covering and metal wire over-braiding. >>>
Model YF-704
Stainless Steel SMALL BORE
|
| Type |
Trade Size |
I.D. (mm) |
O.D. (mm) |
Min Bending Radius
(mm) |
Meter/Coil |
| SM7000103 |
3/8" |
13
|
15.3 |
35 |
50 |
| SM7000104 |
1/2" |
16 |
18.7 |
40 |
50 |
| SM7000106 |
3/4" |
20 |
23.7 |
45 |
50 |
| SM7000110 |
1" |
25 |
28.2 |
55 |
50 |
| SM7000112 |
1-1/4" |
32 |
35.0 |
60 |
30 |
| SM7000114 |
1-1/2" |
38
|
41.4 |
90 |
30 |
| SM7000120 |
2" |
51 |
54.8 |
110 |
20 |
| SM7000124 |
2-1/2" |
63 |
73.1 |
250 |
10 |
|
SM7000130 |
3" |
77 |
88.0 |
275 |
10 |
| SM7000140 |
4" |
100 |
109.7 |
350 |
10 |
|
*All sizes and dimensions
listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other
custom packaging methods or of longer length is also possible upon request and our approval. |
