Corrugated Nylon Flexible Conduit Fittings ( Angle Nylon Connector )

* Most suitable for flexible corrugated nylon conduit

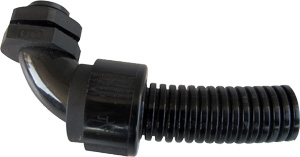

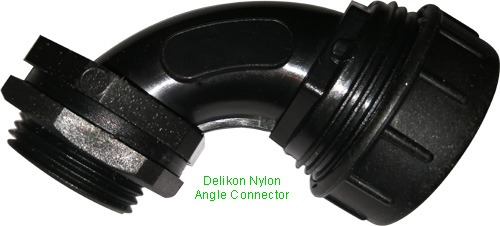

Corrugated Nylon Flexible Conduit Fittings (Angle Nylon Connector)
* All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
* Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
* Smooth internal surfaces provides for easier wire routing, protection, and installation.

Nylon Liquid Tight Conduit Fittings ( Angle )

Liquid Tight

Electrical flexible conduit


Angle Nylon Connector (
PF threads)

Model No.

Trade Size

Dimension (mm)

PF (G) Threads

I.D.

A

B

C

D

PFL-03B

3/8

11.3

20.6

28.0 13 46.2

PF 1/2

PFL-04B

1/2

14.4 20.6 34.5 13 53.1

PF 1/2

PFL-06B

3/4 18.3 26 42.0 15 66.8

PF 3/4

PFL-10B 1 24.4 32 48.5 18 69.5 PF 1
PFL-12B 1-1/4 32.7 42 58.0 18 85 PF 1-1/4
PFL-20B 2 48.8 60 70.5 21 97 PF 2


Angle Nylon Connector (PG threads)

Model No.

Trade Size

Dimension (mm)

PG
Thread
s

I.D.

A

B

C

D

PGL-02-5B

5/16 9.0 15.2 25 10 37.5 PG 9
PGL-03-1B 3/8

11.3

18.6 28 10 40.6 PG 11
PGL-03-2B 3/8

11.3

20.4 28 10 41.3 PG 13.5
PGL-04B 1/2 14.4 22.5 34.5 12 50.6 PG 16
PGL-06B 3/4 18.3 28.3 42 12 65 PG 21
PGL-10B 1 24.4 37.0 48.5 12 61.7 PG 29
PGL-12B 1-1/4 32.7 47.0 58 12 79.5 PG 36
PGL-20B 2 48.8 59.0 70.5 15 91.5 PG 48



Angle Nylon Connector (Metric threads)

Model No.

Trade Size

Dimension (mm)

Metric Threads

I.D.

A

B

C

D

PML-025M12

5/16 9.0 12 24.3 12 37.5 M12 X 1.5

PML-025M16

5/16 9.0 16 24.3 12 37.5 M16 X 1.5
PML-03M16 3/8

11.3

16 27 12 40.6 M16 X 1.5
PML-03M20 3/8

11.3

20 27 13 40.6 M20 X 1.5
PML-04M20 1/2 14.4 20 34.5 13 50.6 M20 X 1.5
PML-04M25 1/2 14.4 25 34.5 13 50.6 M25 X 1.5
PML-06M25 3/4 18.3 25 42 13 65 M25 X 1.5
PML-06M32 3/4 18.3 32 42 15 65 M32 X 1.5
PML-10M32 1 24.4 32 48.5 15 61.7 M32 X 1.5
PML-10M40 1 24.4 40 48.5 15 61.7 M40 X 1.5
PML-12M40 1-1/4 32.7 40 58 15 79.5 M40 X 1.5
PML-12M50 1-1/4 32.7 50 58 15 79.5 M50 X 1.5
PML-20M50 2 48.8 50 70.5 15 91.5 M50 X 1.5
PML-20M63 2 48.8 63 70.5 15 91.5 M63 X 1.5

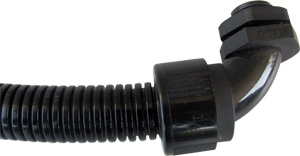

This angle nylon connector is most suitable for use with Corrugated Nylon Conduit (model PB) for industry cable management.

It provides a smooth, gradual radius bend. Wiring is easily pulled or pushed through fitting and there are no sharp edges to strip wire.
                  Metal Liquid Tight Conduit

Metal Liquid Tight Conduit
Related products:
Straight Nylon Connector
Straight
Nylon Connector
NPT Thread Non metallic liquid tight connector
NPT
Thread Connector
Braided Nylon Conduit for Industry RobotsScreen Flex
Over Braided Corrugated Nylon Flexible Conduit
Braided corrugated nylon conduit and connectors system for Industrial, Rail, Underground electrical cable management. Vehicle wiring harnesses flexible conduit...
Electrical flexible conduit
Braided Flexible Metal Conduit System for heavy industry cables protectionConnectors with metal clamping ring for high temperature wirings ( YABS )
Braided Flexible Metal Conduit System is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. Braided flexible conduit also offers excellent protection against hot metal particles, and immunity from electromagnetic interference.
