Flexible Metallic Conduit   ( YF-703 ) flexible metal conduit flexible conduit

Delikon All metal flexible conduit and conduit fittings for Plenum cable protection

Flexible steel conduit has many universal wiring applications. flexible metal conduit conduit
This conduit can withstand substantial impact and crushing forces. flexible metal conduit

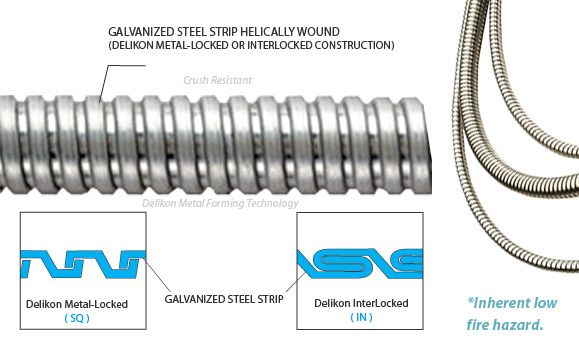

*Flexible metal conduit with square locked or interlocked construction of galvanized steel strip
*Good mechanical protection of wirings *All metallic constructions, inherent low fire hazard

Flexible Metallic Conduit
  • Constructed by square locking or interlocking galvanized steel strip:

    * Flexible metal conduits offer good mechanical protection to wiring in a variety of O.E.M. applications.
    *With excellent flexibility characteristics with the square locked construction. The interlocked construction provides increased mechanical strength.
    *All metallic constructions, inherent low fire hazard

  • Applications:
    Industrial wirings, appliances, automotive wire & cable sleeving, machineries, electric wire flexible conduits
    It can also be used as a protective cover in industrial environments for hydraulic lines, brake lines, power steering assemblies, and wiring harness etc.

Stainless steel constructions
Stainless Steel SMALL BORE

Over braided flexible metal conduit for steel mill wirings
Over Braided flexible metal conduit for steel mill wirings

 Connectors with PG or Metric threadsPG & Metric threads

PG, Metric, NPT liquid tight connector for machine wiring

Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit and Swivel Heavy Series Stainless Steel Connector protect burner system electrical and signal cables
Delikon Triple Layer Stainless Steel Wires Over Braided Flexible Stainles Steel Conduit and Swivel Connector
Flexible Galvanized Steel Conduit is suitable for concealed, exposed, or approved raceways. The flexible conduit is manufactured with a spiral wound strip of corrosion and rust resistant, electrogalvanized steel. The conduit features a smooth metal interior for easy wiring pulling. The flexible steel conduit is wire temperature rated, and has superior crush-proof qualities. Delikon All Metal flexible conduit and conduit fittings are suitable for Plenum cable protection.
DELIKON METAL LOCKED (SQ) FLEXIBLE METAL CONDUIT Square-locked
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70301-SQ - 7.8 8.2 10.8 11.2 25 100
YF-70302-SQ 1/4" 9.7 10.2 13.5 14.0 25 100
YF-70303-SQ 3/8" 12.3 12.8 15.3 15.8 35 50
YF-70304-SQ 1/2" 15.8 16.3 18.7 19.3 40 50
YF-70306-SQ 3/4" 20.8 21.3 23.7 24.2 45 50
YF-70310-SQ 1" 26.4 27.1 29.2 29.8 55 50
YF-70312-SQ 1-1/4" 35.0 35.8 37.7 38.3 60 30
YF-70314-SQ 1-1/2" 40.1 40.6 43.4 44.0 90 25
YF-70320-SQ 2" 51.3 51.9 54.8 55.4 110 20
YF-70324-SQ 2-1/2" 62.9 63.6 66.5 67.2 130 10
YF-70330-SQ 3" 77.9 78.7 81.6 82.4 155 10
YF-70340-SQ 4" 101.6 102.6 105.5 106.5 200 10
YF-70350-SQ 5" 125.0 127.0 135.0 137.5 250 5
YF-70360-SQ 6" 150.0 153.0 160.0 163.0 350 5
DELIKON INTERLOCKED (IN) FLEXIBLE METAL CONDUIT
(HIGH TENSILE STRENGTH)		 Interlocked
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70301-IN - 7.8 8.2 10.8 11.2 25 100
YF-70302-IN 1/4" 9.7 10.2 13.5 14.0 25 100
YF-70303-IN 3/8" 12.3 12.8 15.3 15.8 35 50
YF-70304-IN 1/2" 15.8 16.3 18.7 19.3 40 50
YF-70306-IN 3/4" 20.8 21.3 23.7 24.2 45 50
YF-70310-IN 1" 26.4 27.1 29.2 29.8 55 50
YF-70312-IN 1-1/4" 35.0 35.8 37.7 38.3 60 30
YF-70314-IN 1-1/2" 40.1 40.6 43.4 44.0 90 25
YF-70320-IN 2" 51.3 51.9 54.8 55.4 110 20
YF-70324-IN 2-1/2" 62.9 63.6 66.5 67.2 130 10
YF-70330-IN 3" 77.9 78.7 81.6 82.4 155 10
YF-70340-IN 4" 101.6 102.6 105.5 106.5 200 10
YF-70350-IN 5" 125.0 127.0 135.0 137.5 250 5
YF-70360-IN 6" 150.0 153.0 160.0 163.0 350 5
Download the catalog page for DELIKON YF-703 flexible metal conduit


Download the catalog page for DELIKON crush resistant YF-703 Flexible Metal Conduit in  PDF File format.
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible metal conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.                        Also Refer To: Braided Flexible Metal Conduit, Water Proof

Over Braided Flexible Conduit & Fittings For Industry Automation Cable Management
In industry automation environment, Delikon Over Braided Flexible Conduit & Fittings provide very reliable performance; protection for abrasion and hot metal splash; flexibility; first-class mechanical strength and provide antistatic properties & EMC shielding for critical data & power cables.
Delikon Liquid Tight Conduit has been designed to excel in many applications

Delikon big size Metal Liquid Tight Conduit is suitable for industry and commercial liquid tight applications. Delikon Liquid Tight Conduit has been designed to excel in many applications including but not limited to machine and plant construction, CNC machines, motor and railroad power & signal systems. Full range of liquid tight connectors are available.
Delikon Industry 4.0 Flexible Conduit and Fittings

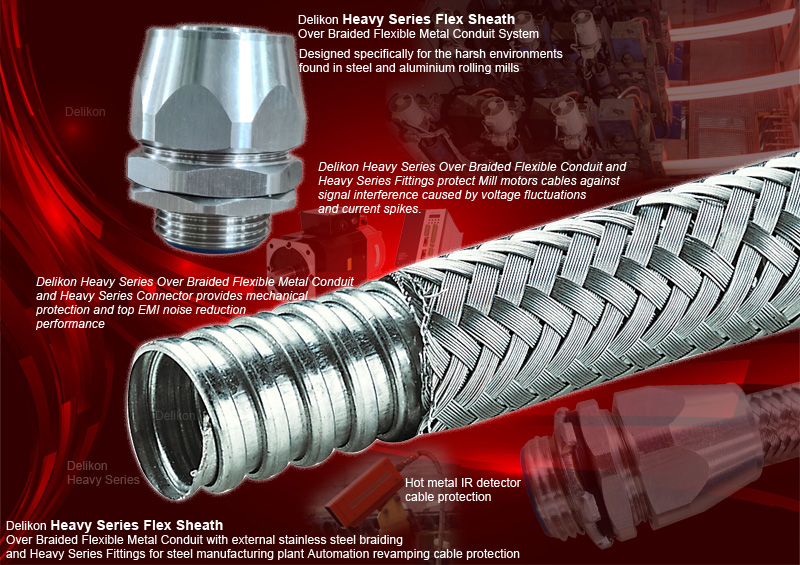

Delikon Heavy Series Flex Sheath Over Braided Flexible Metal Conduit with external stainless steel braiding and Heavy Series Fittings for steel manufacturing plant Automation revamping cable protection
Delikon Heavy Series Flex Sheath Over Braided Flexible Metal Conduit with external stainless steel braiding and Heavy Series Fittings for steel manufacturing plant Automation revamping cable protection.Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings protect Mill motors for slabbing, and blooming mill, Cold Rolling mill VFD motor cable, the shielding provides excellent protection against signal interference caused by voltage fluctuations and current spikes.Designed specifically for the harsh environments found in steel and aluminium rolling mills, Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings protect Hot metal IR detector, Optical Speed meter and Non-contact speed measurement instruments cables. The Heavy Series Over Braided Flexible Conduit and Heavy Series Connectors provide EMI shielding as well as mechanical armouring for steel mill cables.
Delikon provides Integrated Flexible Wiring Protection Solutions for Steel Industry. Reliability is an objective for Delikon flexible conduit system. Therefore, we are able to provide you with robust Heavy Series Flex Sheath Over Braided Flexible Metal Conduit and Heavy Series Connector to meet the main cable protection needs of the production process. Whether in the coke oven battery, blast furnace, drives, continuous pouring or metal processing rolling mills, Delikon Heavy Series Flex Sheath Over Braided Flexible Metal Conduit and Heavy Series Connector are designed to withstand such aggressive environments with excellence.

 On the road to Industry 4.0 in CNC technology with Delikon Cable Protection Heavy Series Flexible Conduit systemsThe metal industry is one of the most versatile industries and therefore predestined for Delikon heavy series over braided flexible conduit and heavy series connector automation cable protection solutions. It requires mechanical protection and top EMI noise reduction performance in difficult, sometimes extreme working conditions. With
Flexible solutions from Delikon, you master these cable management requirements with sustainable success and measurable efficiency.

Whether general industry, automotive supplier or foundry and forging industry: their many facets make the metal industry one of the most demanding industries on the market. Thanks to our many years of
experience we are able to serve the entire spectrum and offer customized cable protection flexible conduit solutions for more efficient processes in metal processing in every area.

 Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor CableDelikon provides a complete range of high performance High Temperature EMI RFI Shielding Small Bore Heavy Series Over Braided Flexible Stainless Steel Conduit and Heavy Series Stainless Steel Connector for mechanical protection as well as emi rfi shielding of sensor cables and wirings for continuous casters, hot rolling mills, processing line and oil and gas industry.Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings protect Mill motors for slabbing, and blooming mill, Cold Rolling mill VFD motor cable, the shielding provides excellent protection against signal interference caused by voltage fluctuations and current spikes.

Designed specifically for the harsh environments found in steel and aluminium rolling mills, Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings protect Hot metal IR detector, Optical Speed meter and Non-contact speed measurement instruments cables. The Heavy Series Over Braided Flexible Conduit and Heavy Series Connectors provide EMI shielding as well as mechanical armouring for steel mill cables.
Delikon High Strength Interlocked Flexible Metal Conduit offers high mechanical protection as well as inherent flame retardant properties and is typically used in machines, factories, electronics industry, underfloor wiring, data cabling and protection of hydraulic or pneumatic hoses.
Delikon High Strength Interlocked Flexible Metal Conduit
 Delikon heat resistant High Temperature Heavy Series Liquid Tight Stainless Steel Connector offers good corrosion resistance to many chemical corrodents, as well as industrial atmospheresDelikon Interlocked Flexible Metal Conduit, constructed from galvanized steel with interlocked profile, provides high compression, tensile and impact strength. From excellent flexibility, to inherent flame retardant properties to exceptional mechanical protection, Delikon Interlocked Flexible Metal Conduit guarantees exceptional quality and safety in industry as well as commercial cable protection areas.Delikon Interlocked Metal Liquid Tight Conduit and Liquid Tight Aluminium Connector protect industry data and power cables
Delikon High Strength Interlocked Flexible Metal Conduit offers high mechanical protection and is typically used in machines, factories, electronics industry, underfloor wiring, data cabling and protection of hydraulic or pneumatic hoses.
www.delikon.com



Over Braided Flexible Steel Conduits for heavy industryHigh Temperature Wrings Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
YABS, All metal connector for high temperature Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel Heavy Series Stainless Steel Connector combination (internal thread) combination (set-screw) Squeeze Type BX-Flex Connector,straight
Y Y Y Y Y Y Y Y Y Y Y Y Y Y

 Y
Delikon EMI RFI Shield Termination Heavy Series Connector, Anti Vibration Swivel Heavy Series Connector, and High Temperature Connector protect automotive industry, Petrochemical industry and metal industry automation cable and Control Cables. Available with G (PF), Metric M, NPT, and PG male and female threads.

Delikon EMI RFI Shield Termination Heavy Series Connector, Anti Vibration Swivel Heavy Series Connector, and High Temperature Connector protect automotive industry, Petrochemical industry and metal industry automation cable and Control Cables. Available with G (ISO 228-1, PF), Metric M, NPT, and PG male and female threads.
