Low Smoke Zero Halogen Liquid Tight Conduit   ( LSHF-806 )

Delikon LSHF, LSZH, LSOH Low Smoke Zero Halogen Liquid Tight Conduit used in public facilities, airports, shopping malls, hotels, schools, hospitals, railway stations and constructions where human and animal life as well as valuable property are exposed to a high risk of fire hazards.
Over Braided Flexible Steel Conduits
Low Smoke Halogen Free Metallic Flexible Liquid Tight Conduit For installation in public facilities, airports, railway stations, hotels, shopping mall, schools, hospitals and constructions, particularly where human and animal life as well as valuable property are exposed to a high risk of fire hazards.

*Galvanized steel strip core with Delikon Interlocked Construction — for greater tensile strength and crush strength. *Smooth Heavy Duty Low Smoke Zero Halogen sheath *Fully flexible with exceptional mechanical strength *Trade size: 1/4"~4" (Delikon Interlocking system) *Liquid-tight  *Increased mechanical tensile strength *LSHF Covering does not wrinkle when bent
delikon.com

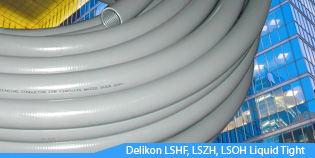

Delikon LSHF, LSZH, LSOH Low Smoke Halogen Free Liquid Tight Conduit  LSHF-806

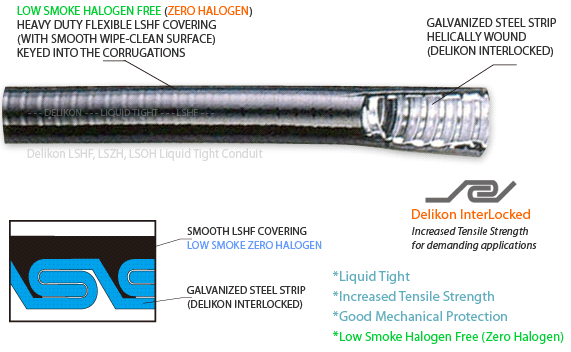

MADE FROM YF-703-IN FLEXIBLE METALLIC CONDUIT WITH HEAVY DUTY SMOOTH LSHF COVERING:
Electrical flexible conduit
*Low smoke halogen free (zero halogen) covering offers security during fire
*
Durable and long life.
*Increased tensile strength.
*Inner core made from a spiral wound strip of high strength galvanized steel.
*Unique Delikon interLocking and Sealing Mechanism for increased strength, and superior moisture tightness. A smooth wipe clean LSHF (Zero Halogen) covering surface is keyed into the metal corrugations.
*Liquid tight. Complete protection against most liquids and moisture vapor. Resists sunlight (UV Resistant), heat, oil and chemical degradation.
  Delikon Liquid Tight Conduit with aluminium connector
    Delikon Liquid Tight Conduit
    with aluminium connector


Applications:

Delikon LSHF, LSZH, LSOH Low Smoke Zero Halogen Liquid Tight Conduit are used in public facilities, airports, shopping malls, hotels, schools, hospitals,
railway stations and constructions where human and animal life as well as valuable property are exposed to a high risk of fire hazards.

Related Products:
   Stainless Steel liquid tight connector,Liquid Tight Stainless Steel conduit for Oil, Chemical, Water, Food, Pharmaceutical, Brewing, Dairy and Soft Drinks industries
DELIKON STAINLESS STEEL LIQUID TIGHT CONNECTOR, STAINLESS STEEL LIQUID TIGHT CONDUIT SYSTEM
COMPLETE Stainless Steel liquid tight connector,Liquid Tight Stainless Steel conduit System for Oil, Chemical, Water, Food, Pharmaceutical, Brewing, Dairy and Soft Drinks industries

Metal Liquid Tight Conduit System
Delikon PVC Coated Liquid Tight Conduits now in extensive use on presses, welders, pumps, blowers, grinders, conveyors, machines and portable tools, automated lines, and in construction, power plants, industry, commerce and transportation.
Delikon Liquid Tight Conduit, Liquid Tight Conduit fittings for Port Equipment and Cargo Crane Cable Protection

Flexible Conduit For Sea Port

Delikon produces a whole range of electrical flexible conduit and fittings providing reliable cable management solutions for all kinds of cargo handling equipments.

>>>Model YF-806
InterLocked Liquid tight Flexible Metal ConduitPVC Coated Interlocked liquid tight conduit for machinery cable protection.


Over Braided Interlcoked Liquid Tight Flexible Metal conduit for increased abrasion resistance and EMI screening.
>>> Model SM-701           SM-701 Braided Interlocked Liquid Tight Conduit
Wire over-braiding provides increased abrasion resistant,
EMI shielding and resistance to hot metal splashes


>>> Model LSHF-707
Zero Halogen Water Proof Flexible Metal ConduitWater resistant Low Smoke Halogen Free flexible metal conduit for general wiring applications for trains and railway stations


Stainless steel liquid tight conduit
Stainless steel liquid tight conduit and stainless steel liquid tight fititngs best for corrosive environment such as chemical industry cable harness

Heavy series over braided flexible metal conduit heavy series flexible conduit fittings HEAVY SERIES FLEXIBLE SHEATH for petro chemical equipment electrical wirings
Heavy series over braided flexible metal conduit heavy series flexible conduit fittings HEAVY SERIES FLEXIBLE SHEATH for petro chemical equipment electrical wirings

Over Braided Flexible Steel Conduits for heavy industry

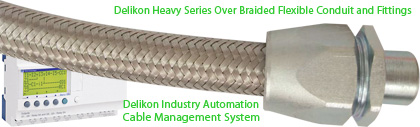

Delikon Heavy Series Over Braided Flexible Conduit and Fittings For industry automation wirings.

EMC Shielding Flexible Conduit

      Over Braided Flexible Conduit for industry machinery cable protection
Heavy Series Interlocked Over Braided Liquid tight Conduit with Swivel Fittings for industrial automation wiringHeavy Series Interlocked Over Braided Liquid tight Conduit with Swivel Fittings for industrial automation wiring
Flexible conduit
Alunimum & Iron Mill cable prection
heavy series over braided flexble conduit system
Delikon Heavy Series Over Braided Flexible Conduit and Fittings For industry automation wirings

www.delikon.com
Delikon LSHF, LSZH, LSOH Low Smoke Zero Halogen Liquid Tight ConduitDelikon LSHF, LSZH, LSOH Low Smoke Zero Halogen Liquid Tight Conduit
With the increased demand for safety in public areas and buildings, contractors are now being advised to install materials that are non-hazardous to members of the public in case of fire. It is now understood that smoke and poisonous fumes can be a greater risk to lives than that of fire alone. Delikon LSHF, LSZH, LSOH Low Smoke Zero Halogen Liquid Tight Conduit is a cable conduit that will offer security during fire, ensuring peace of mind when installing these cable conduits where human life or valuable property are exposed to a high risk of fire hazards.
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meters/Coil
MIN. MAX. MIN. MAX.
LSHF-80602 1/4" 6.2 6.7 11.4 11.9 50 100
LSHF-80603 3/8" 12.5 13.0 17.8 18.3 60 50
LSHF-80604 1/2" 16.1 16.6 21.3 21.8 80 50
LSHF-80606 3/4" 20.7 21.3 25.9 26.4 100 30
LSHF-80610 1" 26.3 26.8 33.3 33.8 150 30
LSHF-80612 1-1/4" 35.0 35.5 42.6 43.1 180 20
LSHF-80614 1-1/2" 40.0 40.5 47.6 48.0 220 20
LSHF-80620 2" 51.0 51.5 60.3 60.8 250 15
LSHF-80624 2-1/2" 63.0 63.7  72.2 73.0 300 10
LSHF-80630 3" 78.0 78.8 88.2 89.0 450 10
LSHF-80640 4"  101.8 102.8 113.2 114.0 600 5
Delikon LSHF, LSZH, LSOH Liquid Tight Conduit provides improved performance in a fire. Delikon LSHF, LSZH, LSOH Liquid Tight Conduit is currently used in areas where people need to be evacuated safely and quickly in an emergency, or in areas containing expensive or sensitive equipment. These areas include hotel, high-rise buildings, exhibition centers, hospitals, metro (subway) systems, airports, communication exchanges, offshore platforms, military applications, power generation facilities, oil and petrochemical installations and many others.
www.delikon.com
Download the catalog page for DELIKON LSHF-806 Low Smoke Zero Halogen Liquid Tight ConduitDownload the catalog page for DELIKON LSHF-806 Liquid Tight Conduit in
PDF File format.
Complete Range of Delikon Quality Liquid Tight Conduits Or have a look at other models of liquid tight conduit:

Flexible conduit systems for ship and marine cables protection


Liquid tight Flexible Steel Conduit for
Oil Refinery Wiring
Delikon flexible conduit
flexible liquidtight conduit
Heavy duty, non-wrinkling smooth durable PVC jacket for exposed applications.
Superior performance and appearance, creating a liquidtight conduit resistant to most oils, acids and vapors present in industrial environments.
Liquidtight Steel Conduits and liquid tight conduit connector System     Sealing Cord added to the convolutions of the liquid tight conduit metal core for increased strength and moisture tightness

Delikon liquid tight conduit is suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs. Delikon liquid tight conduit offers good mechanical and moisture protection to enclosed electrical conductors.
Delikon IP67 Aluminum Liquid Tight Conduit fittings for industry automation wiringDelikon IP67 Aluminum Liquid Tight Conduit fittings for industry automation  Delikon aluminum liquid tight connector connects liquid tight conduit to electrical box, terminal box, and junction box. Delikon Patented Cone Shape Sealing Nut and Rubber Cone Gasket design provides increased liquid tightness, effectively keeping liquid and moisture out in demanding industry environments. The ferrule and body is machined as one sigle unit from high strength aluminium rod, offering excellent pull-off strength. For industry automation cable protection.
Delikon flexible conduit

Liquid tight metal conduits

Liquid Tight Connectors and Fittings
Liquid Tight Connector
Connecting flexible conduit to electric box or enclosure
LT Connectors offer excellent pull-off characteristics.

PGMetric and NPT threads liquid tight connector for machine wiring
        Connectors with PG or Metric threads


Stainless Steel Liquid Tight Connector for paper industry
      Stainless Steel Liquid Tight connector for corrosive environments
Over braided interlocked liquid tight conduit for industry control and PLC wiring
Heavy Series Conduit Fittings for heavy flexible sheath,heavy series over braided flexible conduit Delikon heavy series flexible sheath over braided flexible conduit and heavy series conduit fittings are ideal for protecting crucial communication and power cables in bank, airport and train station

Steel mill wiring heavy series over braided flexible conduit and fittings
Fittings for Braided Conduit

Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor CableDelikon produces a whole range of MS Plug Adapters for connecting a military connector (MS Plug) or circular connector to a flexible conduit for industry cable protection. In particular, the Over Braided Flexible Conduit with MS Adapter is most suitable for CNC machines wiring harness, industry control and automation cables protection. Over Braided Flexible Conduit, Fittings.Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable.
Delikon flexible conduit
Delikon Heavy Series Over Braided Flexible Conduit and Fittings For Industry Automation Cable Management, provide very reliable performance, protection for abrasion and hot metal splash, flexibility, first-class mechanical strength and provide antistatic properties and EMI shielding for critical data and power cables Delikon Heavy Series Over Braided Flexible Conduit and Fittings For Industry Automation Cable Management, provide very reliable performance, protection for abrasion and hot metal splash, flexibility, first-class mechanical strength and provide antistatic properties and EMI shielding for critical data and power cables.
Delikon,Specialist in heavy series over braided electrical flexible conduit and fittings

*We are also dedicated to "cut-to-length" order for flexible conduits. Consult Delikon for details
*All sizes and dimensions listed above are subject to manufacturing tolerances.
 flexible liquidtight conduit
*Standard Packaging:
PVC woven sheet wrappings. Other custom packaging methods or of longer length is also possible upon request and our approval. Also Refer To:
Braided Flexible Metal Conduit  Flexible S.S. Conduit

Heavy Series Over Braided Flexible Metal Conduit For Iron Mill electric cable protection
 Braided Flexible Metal Conduit
Delikon Liquid Tight Connector
CONNECTORS & FITTINGS FOR
LIQUID TIGHT FLEXIBLE CONDUIT
 For Industry Automation
Nylon Conduit For Robot Corrugated Nylon Conduit System For Industry Robot Wiring

Suitable connectors ( LT Metal Connectors )

Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw) Non Metallic Liquid Tight Conduit Fittings
Y Y Y Y Y Y Y Y Y Y Y Y Non Metallic LT Fittings
