Water-tight Flexible Metallic Conduit

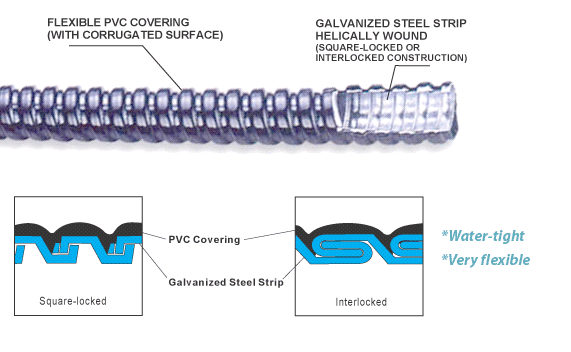

 *Galvanized steel strip core  (square locked YF-603 or interlocked YF-601) *PVC Covered
*1/4"~4" trade size *Water-tight

Water tight flexilbe metallic conduits
  • Flexible metallic conduit with PVC jacket:

    *PVC jacket provides water resistant.
     *Durable and long life.
    *Inner core made from  galvanized steel strip.
    *Square locked construction for more flexibility or interlocked for more strength.



  • Applications:

    Appliances, automotive wire & cable sleeving, industrial equipments,
    medical devices, machineries, wire conduits, air conditioning/heating and ventilation



  • Related Products:

Without PVC covering for general applications >>> Model YF-503


 For higher IP rating applications >>> Model SM-602


EXplosion proof liquid-tight flexible conduits. >>> Model SM-702
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
SQUARE-LOCKED (YF-603)
YF-60302 1/4" 9.7 10.2 10.4 10.7 45 100
YF-60303 3/8" 12.3 12.8 16.4 16.8 50 50
YF-60304 1/2" 15.8 16.2 20.3 20.7 65 50
YF-60306 3/4" 20.8 21.3 25.6 26.0 75 50
YF-60310 1" 26.4 27.1 32.6 33.1 100 50
YF-60312 1-1/4" 35.0 35.5 41.2 41.7 125 30
YF-60314 1-1/2" 40.1 40.6 47.2 47.8 150 25
YF-60320 2" 50.5 51.2 58.7 59.4 175 20
YF-60324 2-1/2" 62.9 63.9 74.1 75.1 200 10
YF-60330 3" 77.0 78.0 89.0 90.0 225 10
YF-60340 4" 99.6 101.6 111.2 112.4 275 10
INTERLOCKED (HIGH TENSILE STRENGTH) (YF-601)
YF-60102 1/4" 9.70 10.2 14.2 14.5 45 100
YF-60103 3/8" 12.3 12.8 16.3 16.6 50 50
YF-60104 1/2" 15.8 16.2 20.3 20.7 65 50
YF-60106 3/4" 20.8 21.3 25.5 26.0 75 50
YF-60110 1" 26.4 27.1 32.4 32.9 100 50
YF-60112 1-1/4" 35.0 35.5 40.8 41.3 125 30
YF-60114 1-1/2" 40.1 40.6 46.7 47.2 150 25
YF-60120 2" 50.5 51.2 58.3 59.0 175 20
YF-60124 2-1/2" 62.9 63.9 73.1 74.1 200 10
YF-60130 3" 77.0 78.0 88.2 89.2 225 10
YF-60140 4" 99.6 101.6 110.2 112.0 275 10
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
